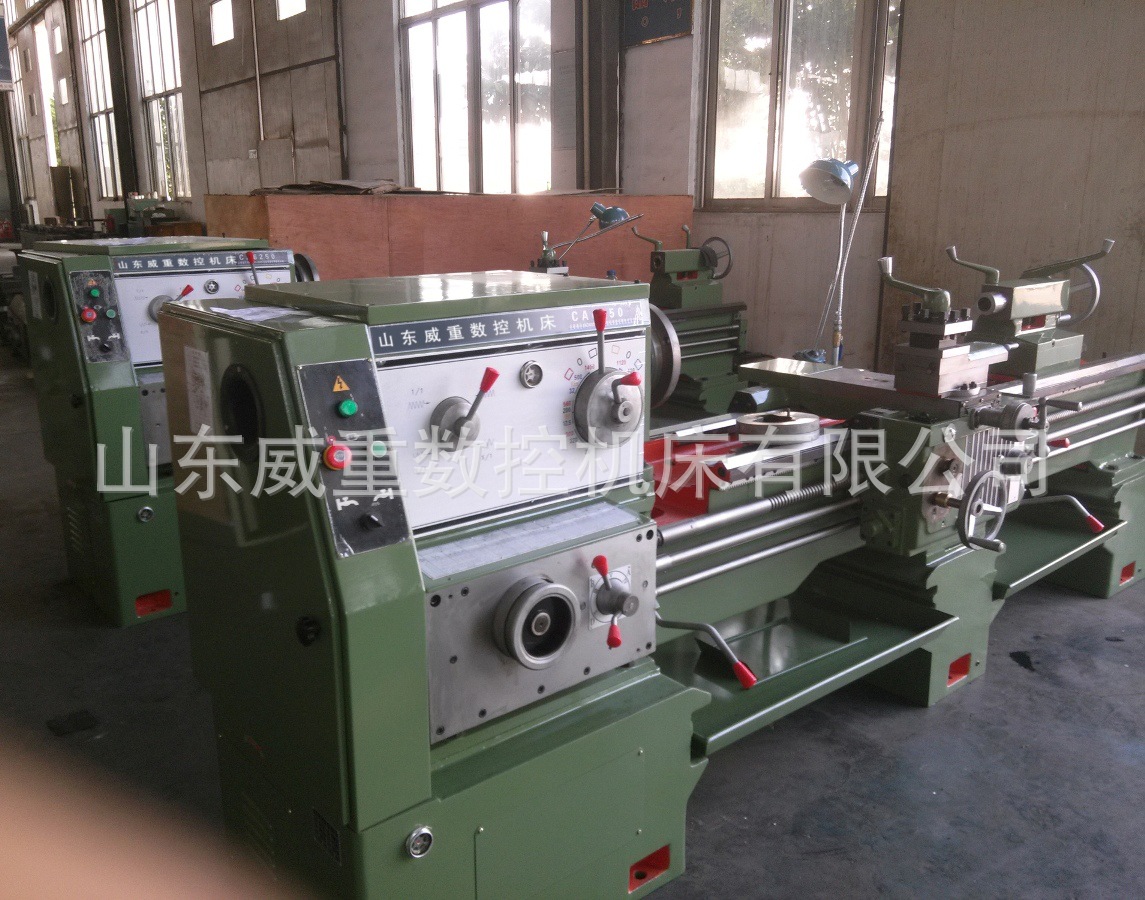

1、床身寬于一般車床，導軌寬400mm，具有較高的剛度，導軌面經中頻淬火，經久耐磨。
2、機床操作靈便集中，滑板設有快移機構。采用單手柄形象化操作，宜人性好。
3、機床結構剛度與傳動剛度均高于一般車床，功率利用率高，適于強力高速切削。主軸孔徑大，可選用附件齊全。
4、機床有快(kuai)速(su)進退刀(dao)，提高工作效率。
|
型號Model |
CA6140 CA6140B |
CA6240 CA6240B |
CA6150 CA6150B |
CA6250 CA6250B |
|
|
床身上MAX工件直徑Max. Swing over bed |
400mm |
500mm |
|||
|
刀架上MAX工件直徑Max. Swing over carriage |
210mm |
300mm |
|||
|
馬鞍槽MAX工件直徑Max. Swing in gap |
- |
630mm |
- |
720mm |
|
|
馬鞍槽有效長度Effective gap length |
- |
210mm |
- |
210mm |
|
|
MAX工件長度Max. Length of workpiece |
750mm or 1000mm or 1500mm or 2000mm or 3000mm |
||||
|
床身寬度Width of bed |
400mm |
||||
|
刀桿截面Section of turning tool |
25X25mm |
||||
|
主軸Spindle |
主軸轉速范圍Spindle speeds |
11—1600 r/min (24 steps) |
|||
|
主軸內孔Hole though spindle |
52mm(80mm) |
||||
|
主軸孔錐度Spindle taper |
Morse No.6 (莫氏6號) |
||||
|
進給Feed |
進給數量No. of feeds |
64種(zhong)(kinds)(for each) |
|||
|
公制螺紋Range of metric threads (kinds) |
(1-192mm)44種(44kinds) |
||||
|
英制螺紋Range of inch threads(kinds) |
(1-24tpi)21種(21kinds) |
||||
|
模數螺紋Rage of module threads(kinds) |
0.25-48(模數39種)(Module 39 kinds) |
||||
|
徑節螺紋Rage of Diametral pitc threads (kinds) |
1-96DP(37種)(37 kinds) |
||||
|
床尾Tailstock |
床尾主軸MAX行程Max tailstock spindle travel |
150mm |
|||
|
床尾主軸直徑Tailstock spindle diameter |
75mm |
||||
|
床尾主軸孔(kong)錐度 |
Morse No.5 (莫氏(shi)5號) |
||||
|
主電機Main motor |
7.5KW(10HP) |
||||
|
包裝外形尺寸Picking dimensions (L×M×H mm) |
Overall dimensions for 750 |
2440X1150X1170 |
2440X1150X1700 |
||
|
Overall dimensions for 1000 |
2650X1150X1700 |
2650X1150X1700 |
|||
|
Overall dimensions for 1500 |
3150X1150X1700 |
3150X1150X1700 |
|||
|
Overall dimensions for 2000 |
3610X1150X1700 |
3610X1150X1700 |
|||
|
Overall dimensions for 3000 |
4610X1150X1700 |
4610X1150X1700 |
|||
|
重量Weight (Kg) |
Length |
毛重G.W.凈重N.W. |
|||
|
Overall dimensions for 750 |
2700 2000 |
2700 2000 |
|||
|
Overall dimensions for 1000 |
2800 2100 |
2700 2000 |
|||
|
Overall dimensions for 1500 |
3050 2250 |
2700 2000 |
|||
|
Overall dimensions for 2000 |
3300 2600 |
2700 2000 |
|||
|
Overall dimensions for 3000 |
4000 3450 |
2700 2000 |
|||
